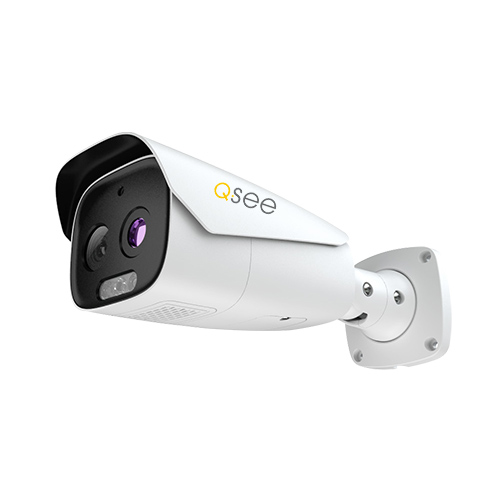

QVP5433E

Thermal:

•384×288 uncooled detector

•17um,NETD: <35mK(@25°C, F#=1.0)

•12.3mm thermal imaging lens

Visible Light:

•5MP ( × ) @30 fps

•1/2.7" BSI + NIR progressive CMOS image

•Min. Illumination: Color :0.0125 lux @F2.0; AGC ON


  • Details
  • Parameter
  • Thermal:

    •384×288 uncooled detector

    •17um,NETD: <35mK(@25°C, F#=1.0)

    •12.3mm thermal imaging lens

    •Temperature accuracy:±0.5°C@(30°C~42°C);

     ±0.3°C@(30°C~42°C, with blackbody)

    •ACB , DPC, 3D DNR, DDE

    •Multi-palette: white, black, pseudo-color

    •Temperature exception alarm

    Visible Light:

    •5MP ( × ) @30 fps

    •1/2.7" BSI + NIR progressive CMOS image

    •Min. Illumination: Color :0.0125 lux @F2.0; AGC ON

    W/B:0.008 lux @F2.0; AGC ON

    •8mm visible light lens

    •3D DNR, true WDR(120dB), HLC, BLC

    •Built-in white light and loudspeaker

    •Capturing 30 faces simultaneously
